- Model: UDM-Pro
UniFi Dream Machine Pro
UniFi Dream Machine Pro (UDM-Pro) is a comprehensive enterprise network device. UDM-Pro combines all existing and future UniFi controllers with a security gateway, 10G SFP + WAN, an 8-port Gbps switch and ready-made support for 3.5 "HDD.
-1U Universal Rack for Small and Medium Businesses
-Combines New UniFi OS with 8-port Switch and Security Gateway
-UniFi Protect NVR Surveillance with Ready Support for 3.5 "HDD
-1-Gigabit RJ45 8-Port Gigabit Switch with 10G SFP + LAN
-Enterprise-grade IPS / IDS, DPI, and Wi-Fi
-Powered by a fast 1.7 GHz quad-core processor
The best experience for large networks.
The universal 1U rack-mount device for small and medium-sized businesses.

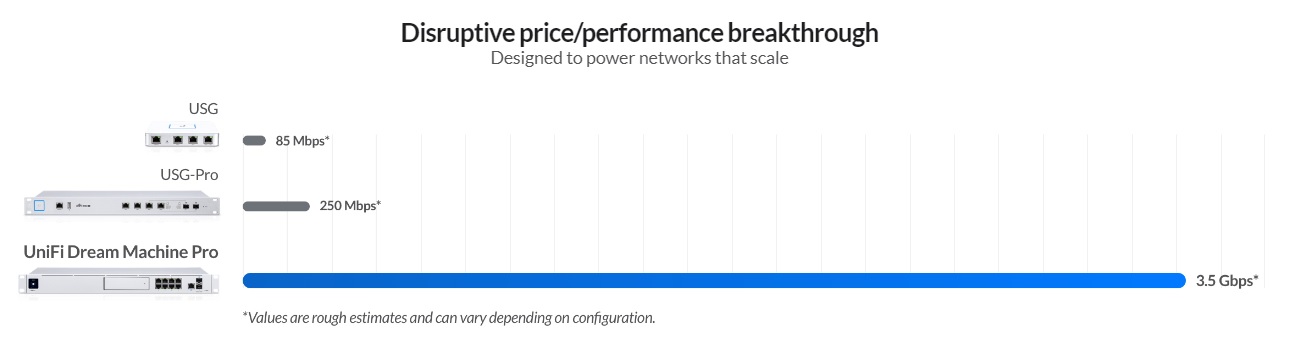

An enterprise-class security gateway combines in one device a router, 10 Gb / s SFP + WAN, application visibility, VPN services and full threat management with a bandwidth of 3.5 Gb / s.
A fully managed 10 Gb / s SFP + downlink switch with eight gigabit RJ45 ports for expansion.
An integrated network management system for all network elements with an easy to use and modern user interface. Wi-Fi AI automatically optimizes your Wi-Fi network.
Professional CCTV and NVR with integrated 3.5 "/ 2.5" hard drive bay for scalable storage.
Additional excess power
UDM Pro is equipped with two WAN ports with disaster recovery and U-LTE1 backup capabilities for reliable Internet access. UniFi SmartPower USP-RPS2 provides redundant power in the event of AC power loss.
The UniFi Enterprise architecture is evolving with the UniFi OS.
The new UniFi Cloud portal provides easy access to all controllers and an increasing number of UniFi applications.
Launch all current and future controllers with one click.
|Protective controller||Single Sign-On Authentication (SSO) simplifies secure access to UniFi applications.|
Administrators easily manage users from one center.
Talk Controller (beta)
Install new UniFi applications and manage them with one click on the settings page.
Absolute Network Integration
Use UniFi Dream Machine Pro as a network controller.
|CPU:||Arm Cortex‑A57 Quad‑Core at 1.7 GHz|
|Supported Input Voltage Range||100 to 240VAC|
|CPU core count:||4|
|Storage size:||16 GB|
|Working temperature:||‑10°C to 40°C|
|Power Method:||Universal AC Input, 100-240VAC, 50/60 Hz|
|Max power consumption:||33 W|
|Power Supply (PoE):||Internal 50W/12V|
