- Model: CRS305-1G-4S+OUT
MikroTik Fiber Box Plus is a powerful outdoor switch that features a state-of-the-art ARM processor, 256MB of RAM, four 10Gbps SFP+ ports, and a Gigabit Ethernet port for management or PoE. Fiber Box Plus supports 3 power options: PoE-in, 2-pin terminal and standard DC jack. With a wide input voltage range (24-57 V), the switch is very efficient - the maximum power consumption without connecting additional devices is only 7 W.
FiberBox Plus is the budget version of the netFiber 9 model, so you can save money if you don't need the extra Gigabit SFP ports. But it still delivers strong performance thanks to the powerful Marvell 98DX226S processor. This rugged outdoor switch is ideal for connecting pole-mount devices such as the mANTBox 52 or LHG XL 52. The FiberBox Plus switch is highly water-resistant and is IP66 rated, meaning it is protected from powerful water jets from any direction.
There are two ways to look at the brand new Fiber Box Plus. On the one hand, it’s a massive upgrade of our previous FiberBox devices. This version features a modern ARM CPU, more RAM, and four 10-Gigabit SFP+ ports. Fast and reliable connectivity on a budget. Without the distance limitations of Ethernet. There’s also a Gigabit Ethernet port for management purposes or PoE-in powering. We’ve also included a 2-pin terminal and a standard DC jack, so you have 3 different power options to choose from. FiberBox Plus supports a wide input voltage range of 24-57V. And it is remarkably efficient: maximum power consumption (without attachments) is only 7W.
Another way to look at the new FiberBox Plus – it’s a budget version of the amazing netFiber 9. You can save a lot of money if you don’t need the extra Gigabit SFP ports. It even features the same impressive Marvell 98DX226S switch-chip, so the performance is definitely there!

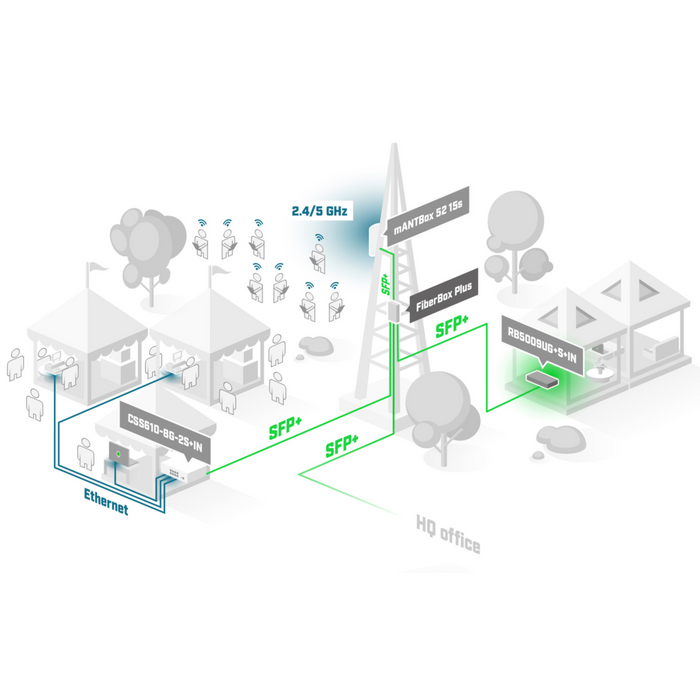

This rugged outdoor switch is perfect for connecting mast devices. Like the mANTBox 52 or the LHG XL 52. Imagine a huge campsite with several guest houses, a food court, and the owner’s cabin. You can connect all the locations with the FiberBox Plus. One of the fiber connections can be used for the mANTBox base station – to provide general connectivity for the guests. Another connection could go to the owner’s house. And the third could be used in the food court – to connect their payment and inventory servers.
Usually, you would need some kind of a junction box to keep everything safe. But our FiberBox Plus comes with a solid water resistance rating of IP66. That means protection against powerful water jets from any direction. So in the campsite scenario, your setup is not only safe from all kinds of crazy weather, but it can also withstand young pranksters with a garden hose. Not to mention damp basements, elevator shafts, seaport infrastructure, and so on. With FiberBox Plus, you have nothing to worry about.
Product Features:
4X10 Gigabit SFP+ Ports
1 Gigabit Ethernet Port
Weatherproof IP66 Outdoor Case
Direct upgrade for existing Fiberbox Setups
RouterOS V7 /SwitchOS
Multiple Powering Options: POE-IN, DC Jack, 2-PIN Terminal
Supports -48V Telco Powering
Product Specifications:
Product code: CRS305-1G-4S+OUT
Architecture: ARM 32bit
CPU: 98DX226S
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 5
Operating System: RouterOS v7 / SwOS
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering:
Number of DC inputs: 3 (2-pin terminal, DC jack, PoE-IN)
DC jack input Voltage: 24-57 V
2-pin terminal input Voltage: 24-57 V
Max power consumption: 17 W
Max power consumption without attachments: 7 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 42-57 V
Product Includes:
(1) MikroTik SwitchCRS305-1G-4S+OUT
(1) Power Adapter (48 V 1.2 A)
(1) Gigabit PoE injector
(1) Hose clamp
(1) Fastening set
(1) Screw set
(1) User Manual
