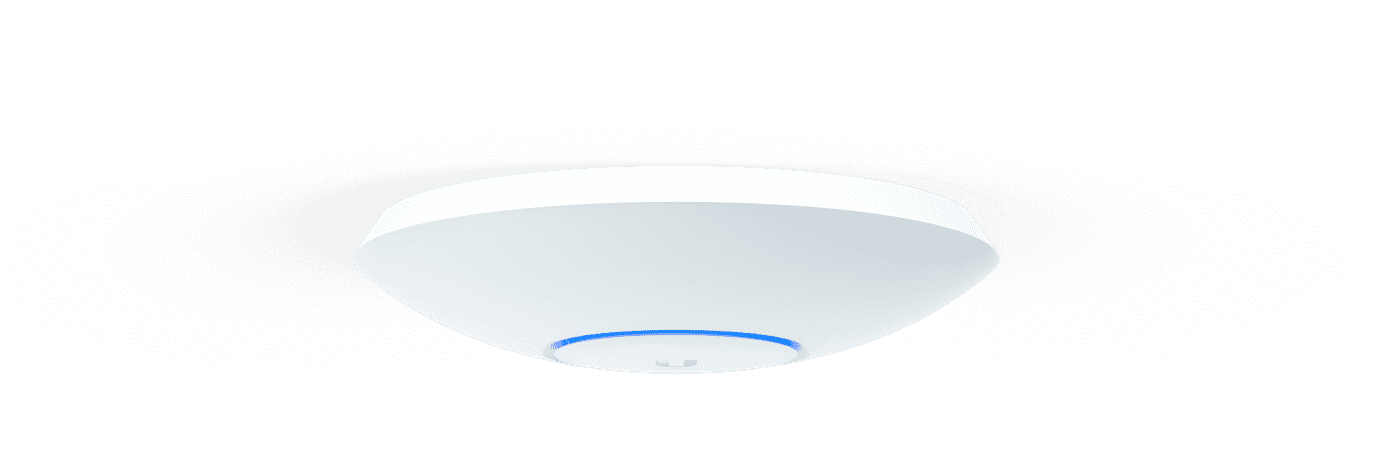

Ubiquiti UniFi 6 Long-Range Access Point (U6-LR)
544.00AZN
Excl. Tax: 461.02AZN
- Model: U6-LR
- - 1.3 GHz dual-core processor (now upgraded to support full-duplex 1 Gbps TCP/IP performance)
- - Four-stream high-efficiency Wi-Fi 6 technology
- - 5 GHz band 4x4 MU-MIMO and OFDMA with radio rate of 2.4 Gbps
- - 2.4 GHz band 4x4 MIMO with radio rate of 600 Mbps
- - Powered with 802.3at PoE (PoE injector not included)
- DATASHEET INSTALLATION GUIDE
-
- UniFi 6 LR AP Next Generation Wi-Fi 6 Access Point with 4x4 MU-MIMO Antenna specially designed to increase wireless coverage. The solutions built on the UniFi 6 Long Range Access Point fully unleash the inherent potential in high-volume premises, for example, in warehouse complexes, hangars, and stadiums. However, the scope of application of the UniFi 6 Long Range Access Point is much wider and is suitable for deployment in offices, apartments, houses. By tuning the antenna algorithm, the UniFi 6 Long Range Access Point is used in situations where there is a need for better reception of a weak signal.
U6-LR is a high-performance Access Point leveraging advanced WiFi 6 technology to provide powerful wireless coverage to enterprise environments.
It delivers an aggregate radio rate of up to 3.0 Gbps with 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz 4x4 MIMO radios. The U6-LR seamlessly blends into any environment, and is capable of being mounted in indoor and semi-outdoor environments (IP54 rated).
Features:
Specifications | |
Buttons | Factory Reset |
LEDs: | RGB |
Management: | Ethernet Bluetooth Low Energy 5.0 |
Mounting: | Wall/Ceiling (Kits Included) SGCC Steel |
Supported Input Voltage Range | 44 to 57VDC |
Memory: | 512 MB |
Dimensions: | Ø220 x 48 mm (Ø8.66 x 1.89") |
Weight: | Without Mount: 800 g (1.76 lb) With Mount: 930 g (2.05 lb) |
Operating Temperature: | -30 to 60° C (-22 to 140° F) |
Operating Humidity: | 5 - 95% Noncondensing |
Processor Specs: | Dual-Core® Cortex® A53 at 1.35 GHz |
Networking Interface: | (1) 1 Gbps Ethernet RJ45 |
Enclosure Characteristics: | Plastic |
Wireless | |
BSSID | 8 per Radio |
Wireless Security: | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*) *Supported With Upcoming Controller Versions |
Software | |
Wi-Fi Standards: | 802.11a/b/g Wi-Fi 4/Wi-Fi 5/Wi-Fi 6 |
Management | |
Advanced QoS | Per-User Rate Limiting |
Concurrent Clients | 300+ |
Guest Traffic Isolation | Supported |
VLAN | 802.1Q |
Powering | |
Power Supply: | UniFi PoE Switch 48V, 0.5A PoE Adapter (Not Included) |
Power Method: | PoE+, Passive PoE (48V) |
Max power consumption: | 16.5W |
Certification & Approvals | |
Certifications | CE, FCC, IC |
IP rating | IP54 |
