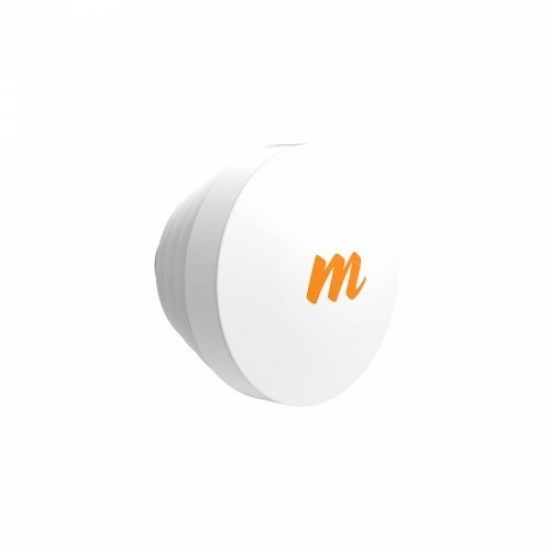

Mimosa N5-X16 Horn Antenna 16dBi for C5x (100-00087)

Gain

16 dBi

Polarisation

Dual-slant 45º

Beamwidth, Symmetric (3 dB)

22º

Front-to-Back Ratio (min)

50 dB

Front-to-Side Ratio (min)

43 dB

Dimensions

Diameter: 160 mm (6.29”)

Depth: 116 mm (4.57”)

Mount

Mimosa N5-X twist-on

Wind Survivability

200 km/h (125 mph)

Wind Loading

5.13 kg @ 160 km/h (11.3 lbs @ 100 mph)

Weight

0.61 kg (1.35 lbs)

Package Contents

1x Mimosa N5-X16 Antenna
