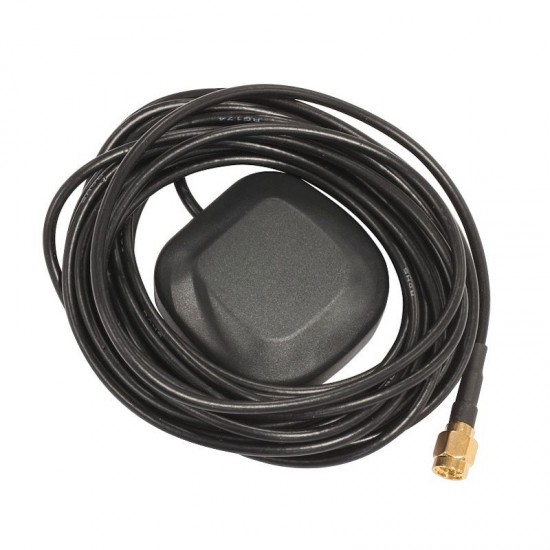

MikroTik ACGPSA

The active GPS antenna is the perfect companion for the LtAP mini, giving you the possibility to get accurate geographical coordinates of your router, even when it is mounted indoors. The long cable allows to bring the antenna outside and mount it with the included magnet, or double sided tape.

The ACGPSA is a standalone active GPS antenna, specifically made for the 1575.4 MHz frequency used by GPS. The size of the antenna is 46.5 mm x 26.5 mm x 12.5 mm and is waterproof with IP67 rating. It has a long 5 m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).

Specifications:

• Center frequency 1575.42 Mhz
• Gain 26 dB
• Water resistance 100% waterproof (IP67)
• Connector SMA
• Cable 5 m RG-174/U (standard)
• Standard mounting Magnetic base
• DC voltages 3 V +-0.3 V
• DC current 8 mA max
• Dimensions 46.5 x 46.5 x 12.5 mm
• Weight 35 g, 120 g (with cable and connector)
• Operating temperature -40°C .. +85°C tested
